Empty croissants

Machines for the production of empty croissants

  • croissant machine,croissant line,croissant machines,croissant lines,empty croissant,croissant production,stoccoimpianti, stocco impianti
  • croissant machine,croissant line,croissant machines,croissant lines,empty croissant,croissant production,stoccoimpianti, stocco impianti
  • croissant machine,croissant line,croissant machines,croissant lines,empty croissant,croissant production,stoccoimpianti, stocco impianti
  • croissant machine,croissant line,croissant machines,croissant lines,empty croissant,croissant production,stoccoimpianti, stocco impianti

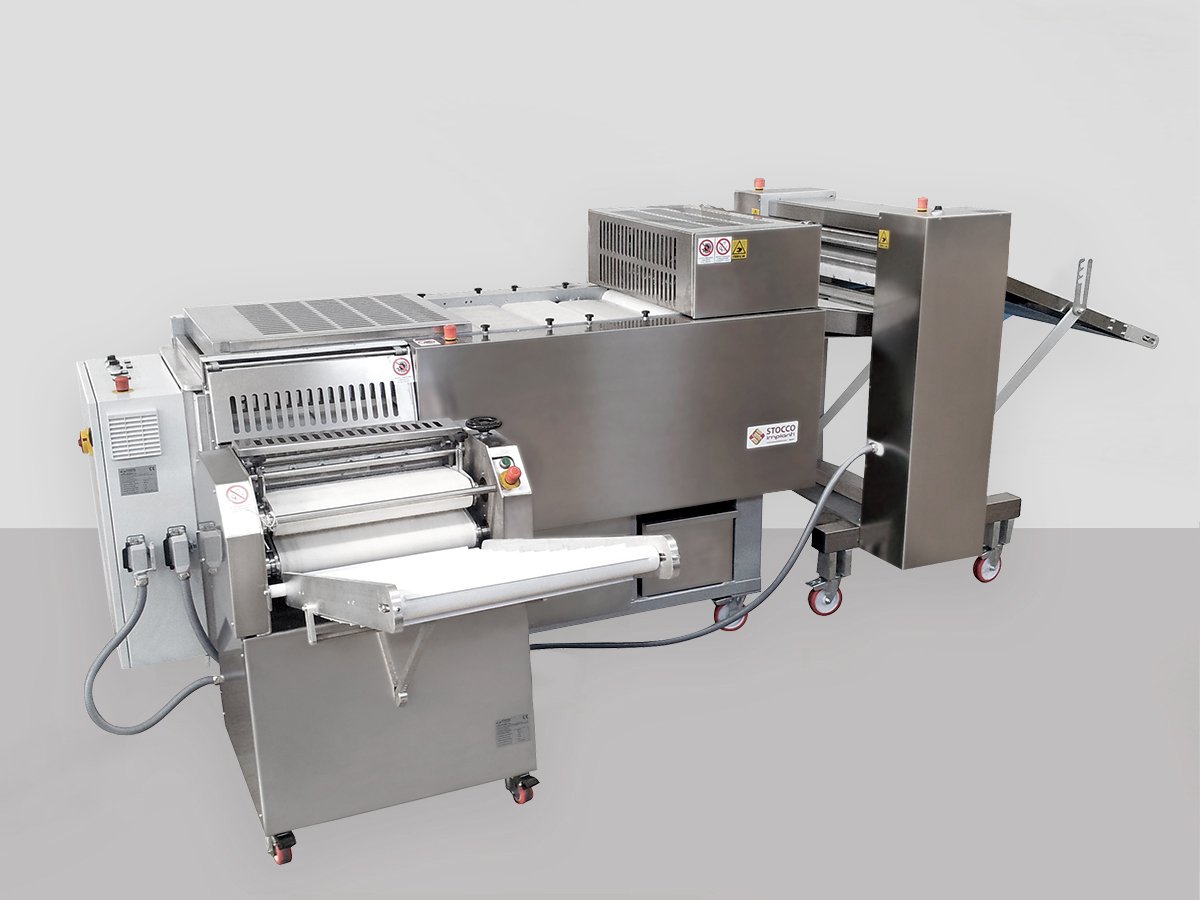

Nr. 2 models are available: K51 (5.000 pieces/h on average) and K150 (15.000 pieces/h on average)

Both the machines are equipped with:

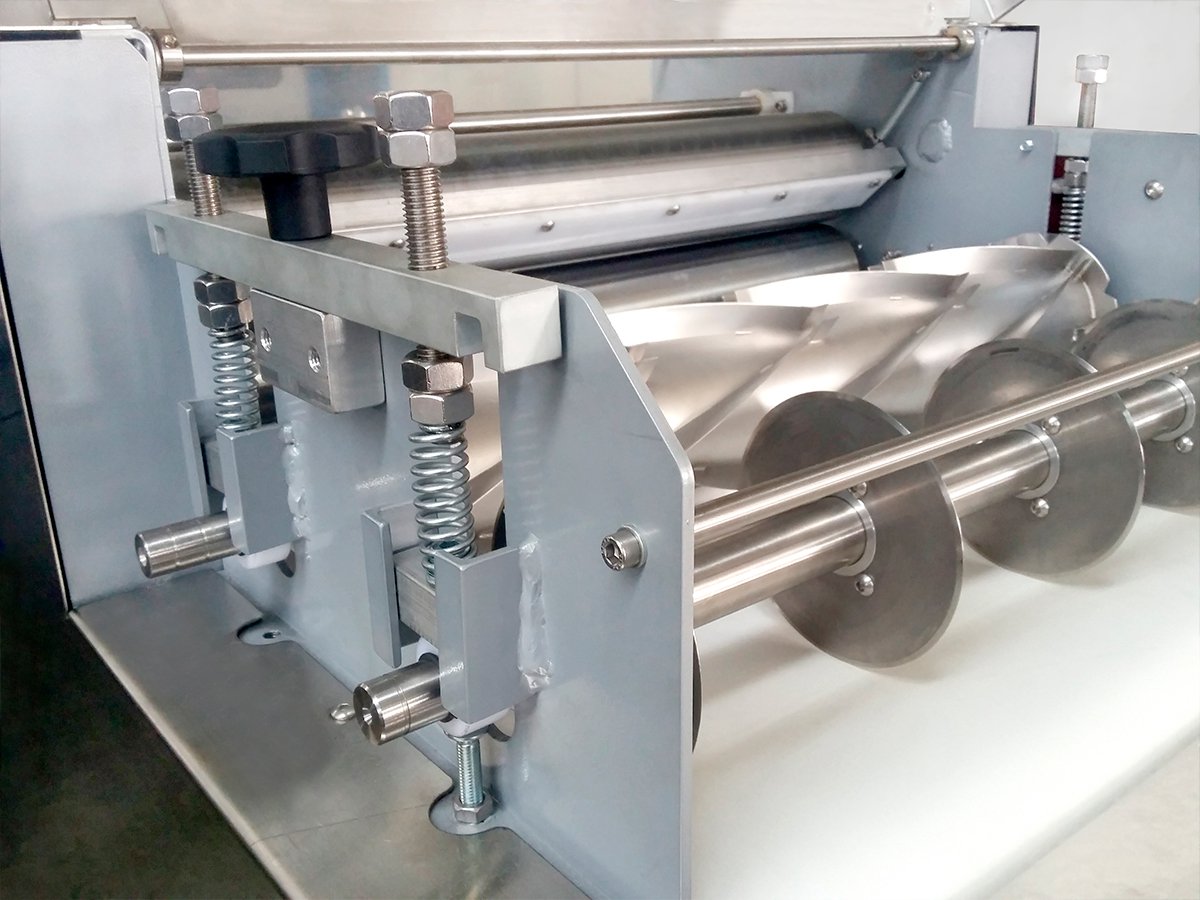

Double cutting station

Spacer unit

Triangles alignment through electromechanical retracting

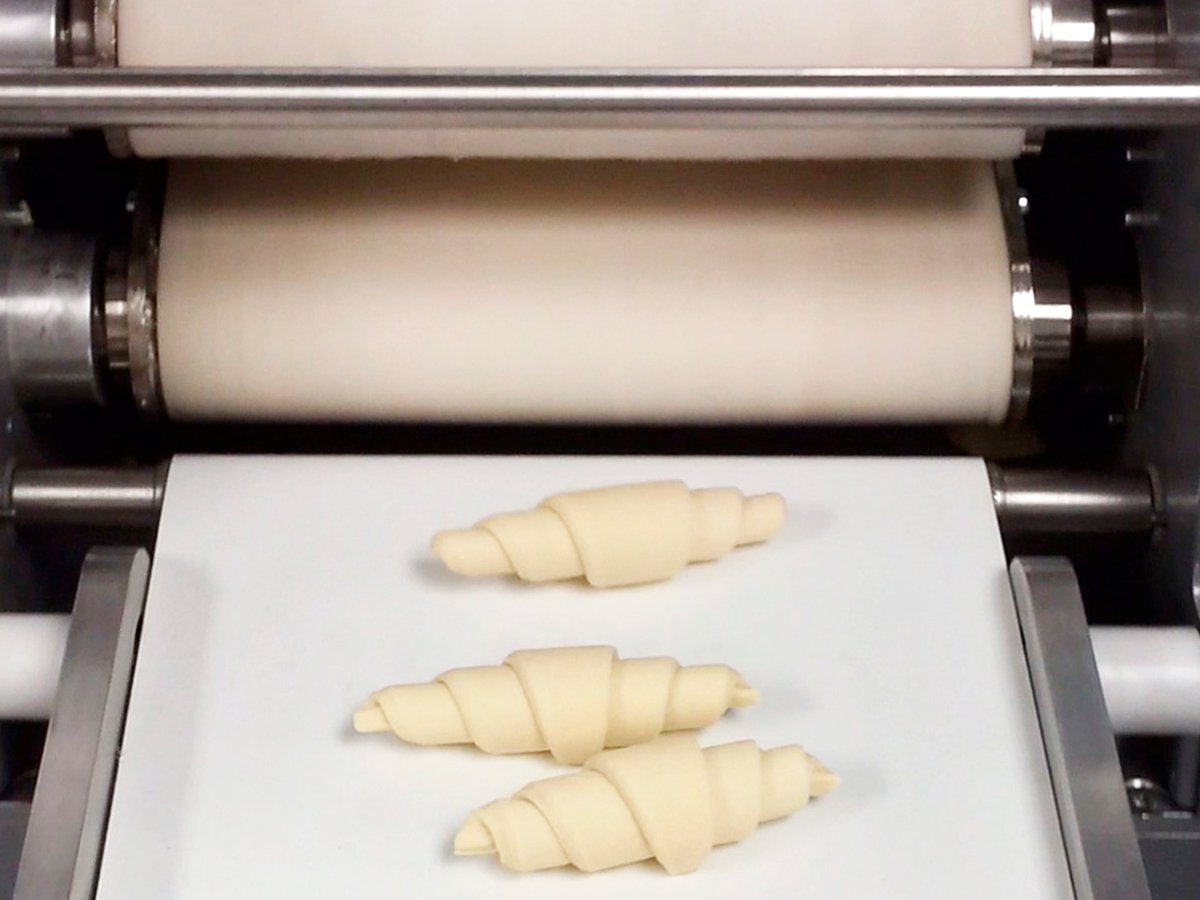

Lateral output for the croissants

Device for the collection of lateral wastes

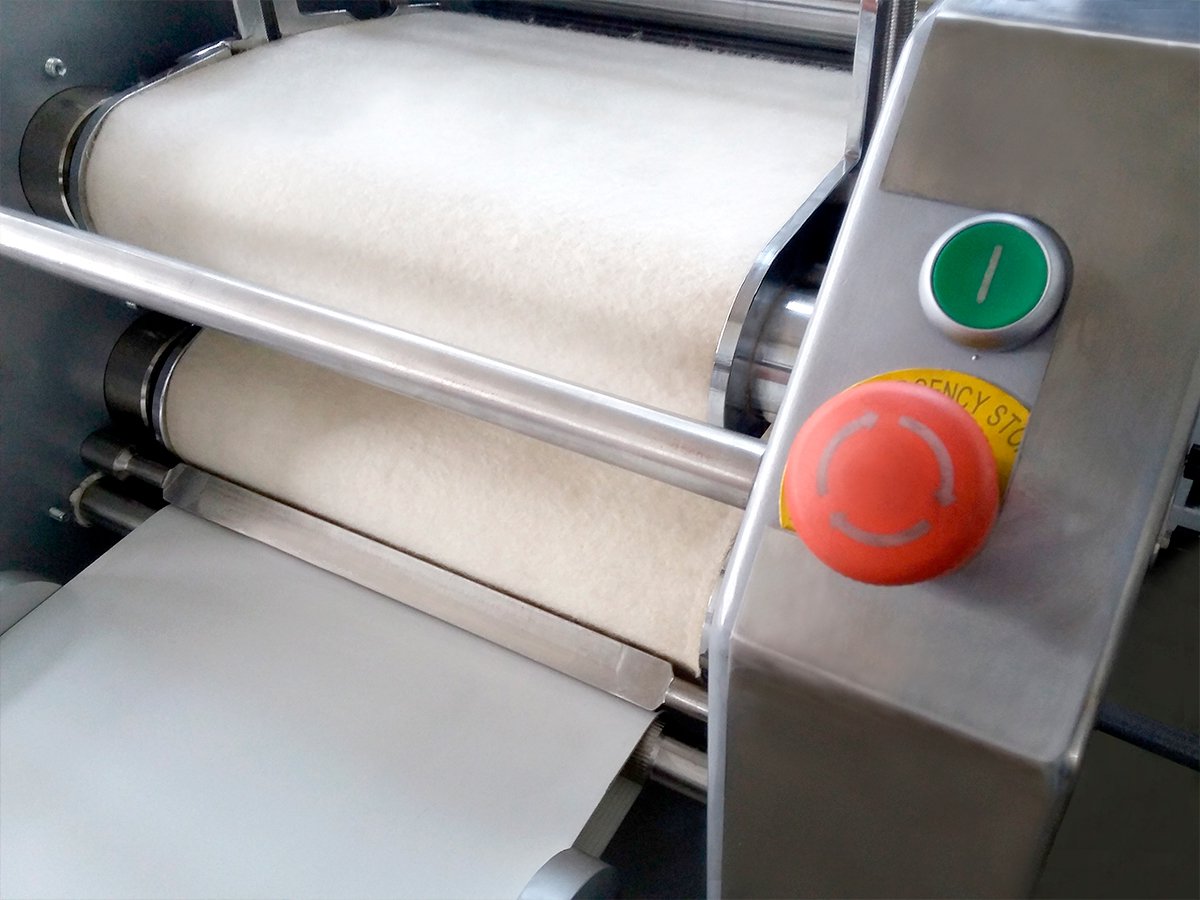

Rollers quick-release system in order to replace felts without technicians’ support

Stainless steel control panel able to manage all the accessories of the line.




DATI TECNICI

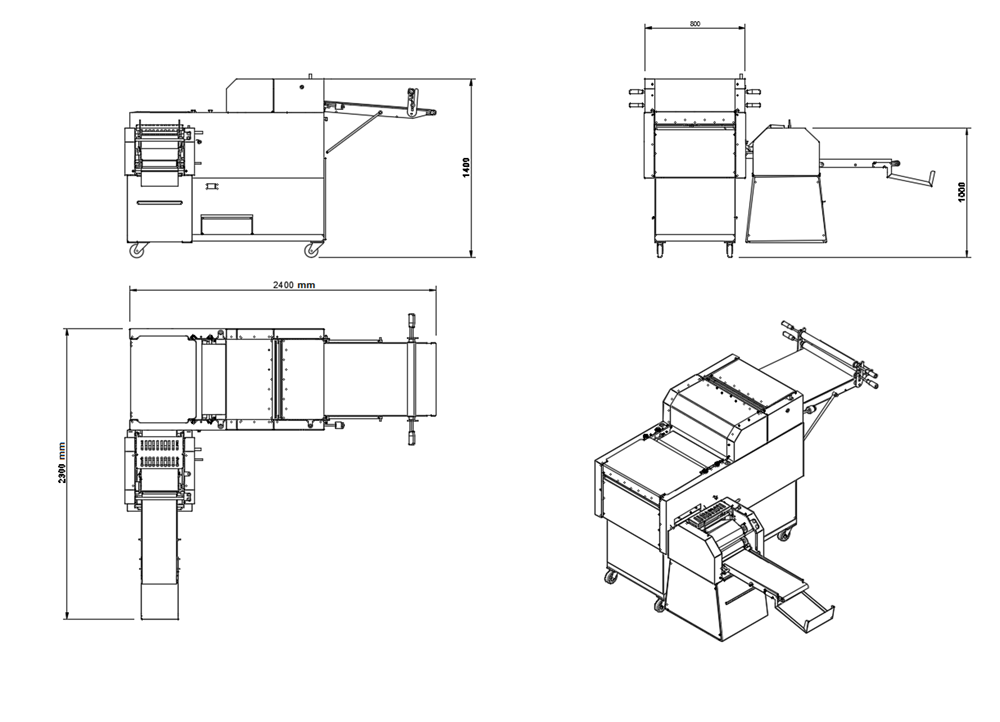

MODEL K51

MODEL K150
Gauging unit Integrated gauging unit Separate gauging unit
Working width 550 mm 550 mm
Output Nr. 1 curling unit Nr. 2 curling units
Voltage 400 V; 220 V upon request 400 V; 220 V upon request
Power 1,7 kW 4,1 kW









Model K51


CAPACITY PER HOUR





2 rows

MODEL K51

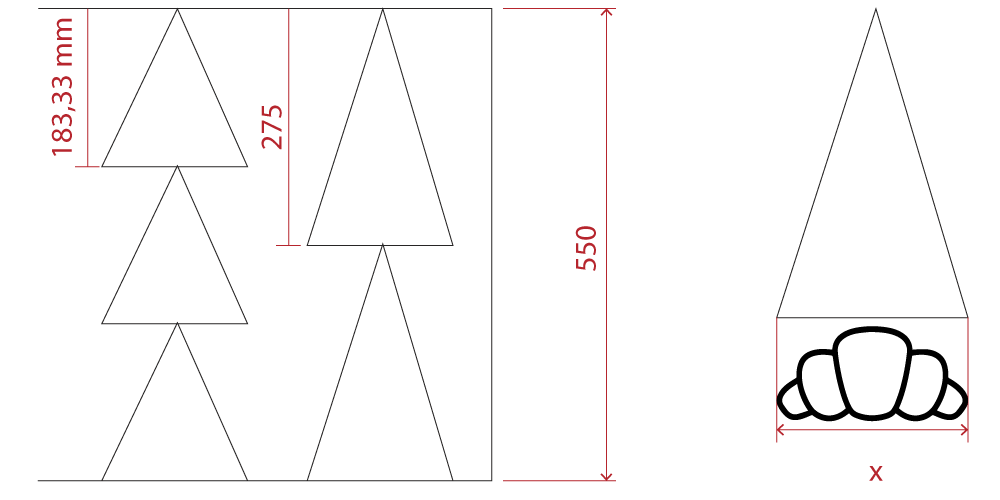

Triangle height: 275 mm
Weight: 100 gr
Capacity: 2.500 pieces/hour

MODEL K150



Triangle height: 275 mm
Weight: 100 gr
​Capacity: 9.000 - 10.000 pieces/hour

3 rows

Triangle height: 183,33 mm
Weight: 80 gr
Capacity: 3.500 pieces/hour

Triangle height: 183,33 mm
Weight: 80 gr
Capacity: 10.000-13.000 pieces/hour

4 rows

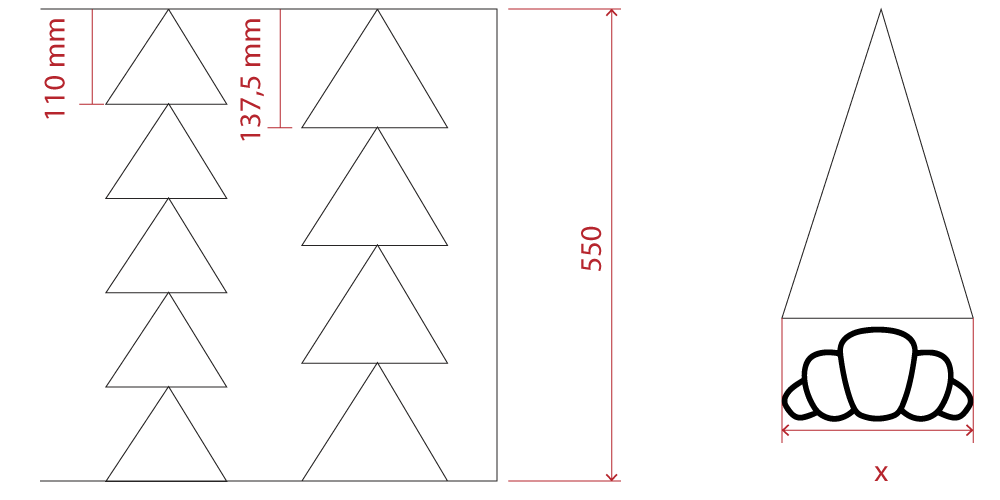

Triangle height: 137,50 mm
Weight: 60 gr
Capacity: 5.000 pieces/hour

Triangle height: 137,50 mm
Weight: 60 gr
Capacity: 13.000 - 15.000 pieces/hour

5 rows

Triangle height: 110 mm
Weight: 40 gr
Capacity: 6.000 pieces/hour

Triangle height: 110 mm
Weight: 40 gr
Capacity: 15.000 - 17.000 pieces/hour

*Due to our policy of continuous improvement and development, we reserve the right to change the technical features of the machines at any time, without notice.
